500-3500 HP Fuel Consumption Monitor
Having immense expertise in this domain, we have been engrossed in manufacturing, exporting and supplying quality assured 500-3500 HP Fuel Consumption Monitor. This monitor is manufactured using supreme grade components by our skilled professionals with the aid of cutting-edge techniques. The offered product is ideal to be used for monitoring the consumption of fuel in various industrial application. Furthermore, the provided 500-3500 HP Fuel Consumption Monitor can be bought from us at rock bottom prices.
Key Points:
- Enhanced durability
- Sturdiness
- Easy to use
- Highly reliable
500-3500 HP Fuel Consumption Monitor
Features:
- Accuracy guaranteed over 15-1500 LPH consumption.
- Built in high capacity filter.
- Works on 12V / 24V DC power supply.
- Measures net consumption with single flow sensor.
- Gravity head not essential for operation.
- RS 485 Serial output - optional for PLC / SCADA interface.
- Provided with sturdy mounting frame.
Specification:
| Measurement Flow Range | : 150-1500 LPH |
| Accuracy | ±0.5% of reading |
| Service | Diesel |
| Operating Temp. | 0-70 C |
| Display | 8 2 Dot matrix LCD back light display. |
| Fuel Totaliser - 999999.9 lit. | |
| Engine Run Time - 999999.99 Hrs/mins. | |
| Filter Element | 25 micron paper replicable type. |
| Power Supply | 24V DC |
| Port Size | Inlet - 1 BSPF |
| Outlet - 1 BSPF | |
| Return - 1 BSPF | |
| Mounting | MS fabricated frame for ground mounting of unit. |
| Serial Output | RS 485 MODBUS RTU optional |

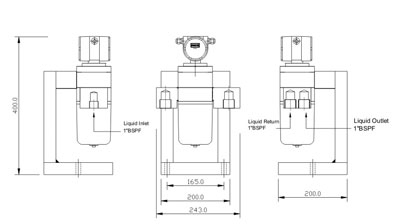

Dimension:
Installation:
